Description

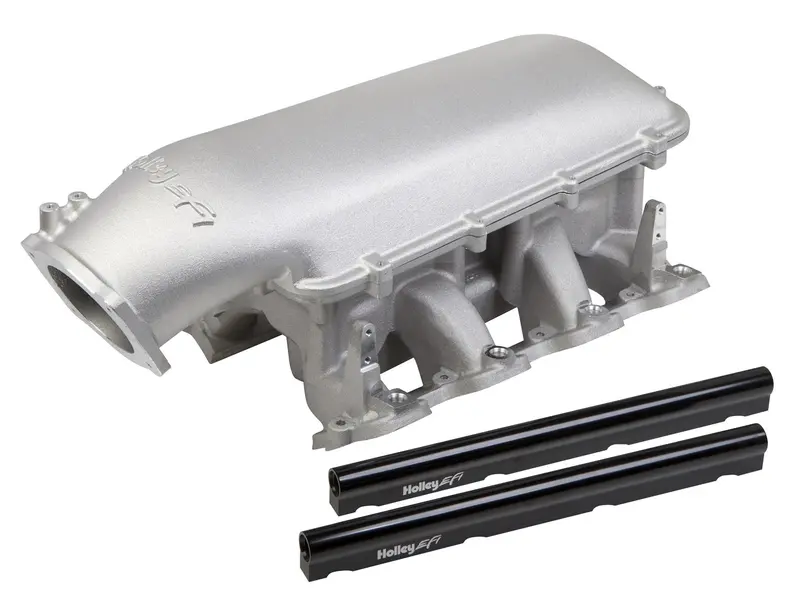

The Modular Mid–Rise intake utilizes the popular Holley LS1/LS2/LS6 cathedral port Mid–Rise 2 x 4 intake Manifold along with a purpose built plenum base Adapter and a Holley 92MM EFI plenum top which converts it into a Mid–Rise EFI intake manifold. With a max overall height of only 10.44in., the Mid–Rise Manifold is an excellent choice for street and performance street/strip applications with a powerband from 1,500–6,500 RPM and limited hood clearance. It’s perfect for a blow–thru or turbocharged application. Being part of the Holley modular intake line means that this intake is not only available as a complete kit with intake, adapter, 92MM top and fuel rails, but all parts can also be purchased separately for a custom intake build. The plenum Adapter (PN 300–231) will accept all of the popular Holley Hi–Ram plenum tops as a foundation for custom induction systems.
Resources
Installation Instructions
Specifications:
| Description_ASC | Holley Performance Emission Code 4: This part is legal for sale or use on Racing Use Only Vehicles. The following vehicles are considered Racing Use Only Vehicles: Racing Use Only Vehicles are vehicles that are used exclusively for competition that are not registered and that may never be used on the street. WARNING: It is against the law to install this part on an Emissions Controlled Vehicle |
| Description_ASM | The Modular Mid-Rise intake utilizes the popular Holley LS1/LS2/LS6 cathedral port Mid-Rise 2 x 4 intake manifold along with a purpose built plenum base adapter and a Holley 92MM EFI plenum top which converts it into a Mid-Rise EFI intake manifold. With a max overall height of only 10.44in.; the Mid-Rise manifold is an excellent choice for street and performance street/strip applications with a powerband from 1;500-6;500 RPM and limited hood clearance. It s perfect for a blow-thru or turbocharged application. Being part of the Holley modular intake line means that this intake is not only available as a complete kit with intake; adapter; 92MM top and fuel rails; but all parts can also be purchased separately for a custom intake build. The plenum adapter (PN 300-231) will accept all of the popular Holley Hi-Ram plenum tops as a foundation for custom induction systems. |
| Description_DEF | Engine Intake Manifold |
| Description_DES | Intake Manifold |
| Description_EXT | Intake Manifold; Upper; w/92mm Top Platform Engines; Mid-Rise; EFI; Front/Rear Height 10.44 in.; RPM Power Band 1500-6500; Satin Finish; |
| Description_FAB | 92Mm EFI Plenum Top |
| Description_FAB | Cast Aluminum Construction |
| Description_FAB | Dual plane Layout w/EFI Manifold Plenum For Great Mid-Range Torque |
| Description_FAB | Dualplane Layout w/EFI Manifold Plenum For Great Mid-Range Torque |
| Description_FAB | Great For Supercharged Or Turbocharged Engines |
| Description_FAB | May Require An Aftermarket Hood For Some Vehicle Applications |
| Description_FAB | Performance To 6500 Rpm w/ Look Of A Racing EFI Intake Manifold |
| Description_FAB | Power Band From 1500-6500 RPM |
| Description_INV | LS1/2/6 MID RISE IM KIT |
| Description_MKT | The Modular Mid-Rise intake utilizes the popular Holley LS1/LS2/LS6 cathedral port Mid-Rise 2 x 4 intake manifold along with a purpose built plenum base adapter and a Holley 92MM EFI plenum top which converts it into a Mid-Rise EFI intake manifold. With a max overall height of only 10.44 in., the Mid-Rise manifold is an excellent choice for street and performance street/strip applications with a powerband from 1,500-6,500 RPM and limited hood clearance. Its perfect for turbocharged, or normally aspirated applications. This manifold is modular, and the plenum adapter (PN 300-267) will accept all of the popular Holley LS Hi-Ram plenum tops as a foundation for custom induction systems.*** The front and rear height measurements listed in the Specs section are referencing the overall height with the top plate installed. Please see the diagrams in the product images for other dimensions. |
| Description_MKT | The Modular Mid–Rise intake utilizes the popular Holley LS1/LS2/LS6 cathedral port Mid–Rise 2 x 4 intake Manifold along with a purpose built plenum base Adapter and a Holley 92MM EFI plenum top which converts it into a Mid–Rise EFI intake manifold. With a max overall height of only 10.44in., the Mid–Rise Manifold is an excellent choice for street and performance street/strip applications with a powerband from 1,500–6,500 RPM and limited hood clearance. It’s perfect for a blow–thru or turbocharged application. Being part of the Holley modular intake line means that this intake is not only available as a complete kit with intake, adapter, 92MM top and fuel rails, but all parts can also be purchased separately for a custom intake build. The plenum Adapter (PN 300–231) will accept all of the popular Holley Hi–Ram plenum tops as a foundation for custom induction systems. |
| Description_SHO | Intake Manifold |
| height | 16.5 |
| length | 27.0 |
| LTL | N |
| weight | 41.0 |
| width | 14.5 |
