Description

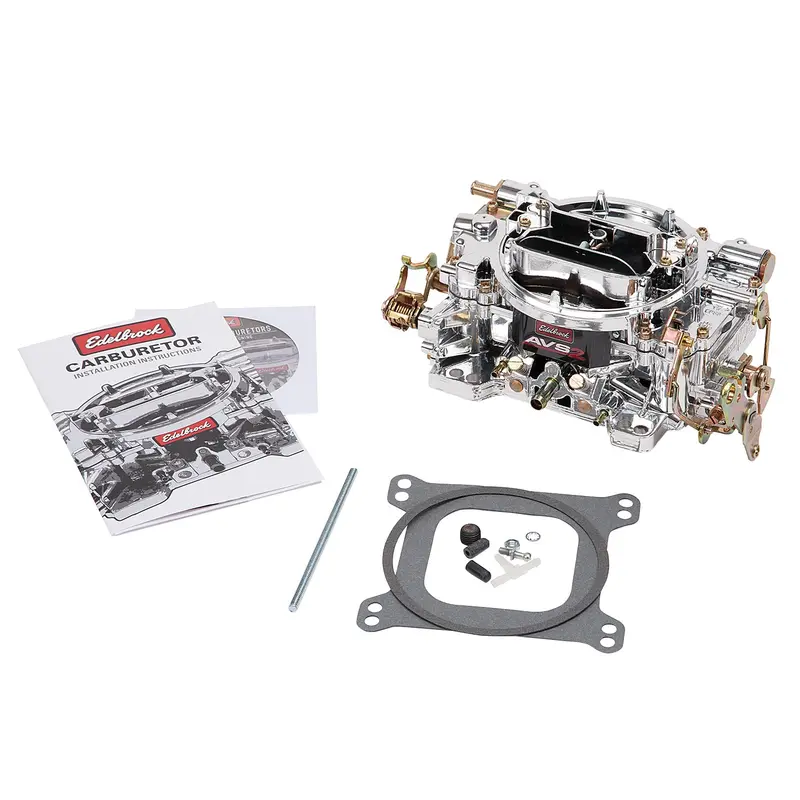

The Edelbrock #19054 AVS2 Series EnduraShine 650 cfm carburetor is the next generation in Edelbrock carburetors. Designed and calibrated for optimum street performance in small-block and some big-block engines. The AVS2 features annular flow primary boosters with a new calibration for improved off idle and cruising performance. The annular flow booster design delivers improved fuel atomization to eliminate flat spots that may be encountered when the carburetor transitions from idle to full throttle. Each annular flow booster features eight, equally spaced orifices to improve fuel metering from idle to the main circuit. The improved flow metering makes this carburetor ideal for use with a wide variety of small-block and big-block engines with either dual- or single-plane intake manifolds. The Edelbrock #19054 AVS2 includes both timed and full vacuum ports for ignition advance. It comes with: Metering Jets ? Primary .101, Secondary .098; Metering Rods ? .070 x .037; Step-Up Spring ? orange (5″ Hg). Use our Carburetor Stud Kits #8008 or #8024 if needed. Match with a variety of manifolds that include Edelbrock Performer, Performer EPS, RPM Air-Gap, Performer RPM, Torker II or other brands of similar design.
Specifications:
| Barrel | Four |
| Barrel Quantity | 4 Barrel |
| Body Height | 3.25 |
| Booster Type | annular |
| Bore Diameter | Primary Bore 1.44; Secondary Bore 1.75 |
| CFM | 650 |
| Choke | Manual |
| Choke Type | Manual |
| Condition | New |
| Description_ABR | CARB |
| Description_DEF | Carburetor |
| Description_DES | AVS CARB |
| Description_EXT | The Edelbrock #1905 AVS2 Series EnduraShine 650 cfm carburetor is the next generation in Edelbrock carburetors. Designed and calibrated for optimum street performance in small-block and some big-block engines. |
| Description_FAB | Delivers Improved Fuel Atomization To Eliminate Flat Spots |
| Description_FAB | Designed and Calibrated For Optimum Street Performance |
| Description_FAB | Features Annular Flow Primary Boosters |
| Description_FAB | For Single Or Dual Plane Intake Manifolds |
| Description_FAB | Improved Flow Metering Make It Ideal For Small/Big Block Engines |
| Description_FAB | Timed And Full Vacuum Ports For Ignition Advance |
| Description_INV | Edelbrock AVS2 650 cfm Carburetor |
| Description_KEY | 19054; Edelbrock; carburetor; carb; AVS2 series; AVS2; 4-barrel; square-bore; square flange; 650 cfm; 650 carb; 4150; EPS; leak free design; holds tune; manual choke; Performance; Qwik-Tune; Qwik-Tune Secondary Air Valve; EnduraShine |
| Description_LAB | AVS2 Carburetor #19054 650 CFM With Manual Choke, EnduraShine Finish (Non-EGR) |
| Description_LAB | AVS2 Carburetor #19054 650 CFM With Manual Choke; EnduraShine Finish (Non-EGR) |
| Description_MKT | Metering Rods: .070 x .037 |
| Description_MKT | Step-Up Spring: Orange (5″ Hg). Use our Carburetor Stud Kits #8008 or #8024 if needed. Match with a variety of manifolds that include Edelbrock Performer, Performer EPS, RPM Air-Gap, Performer RPM, Torker II or other brands of similar design. |
| Description_MKT | The Edelbrock #19054 AVS2 Series EnduraShine 650 cfm carburetor is the next generation in Edelbrock carburetors. Designed and calibrated for optimum street performance in small-block and some big-block engines. The AVS2 features annular flow primary boosters with a new calibration for improved off idle and cruising performance. The annular flow booster design delivers improved fuel atomization to eliminate flat spots that may be encountered when the carburetor transitions from idle to full throttle. Each annular flow booster features eight, equally spaced orifices to improve fuel metering from idle to the main circuit. The improved flow metering makes this carburetor ideal for use with a wide variety of small-block and big-block engines with either dual or single plane intake manifolds. The Edelbrock #19054 AVS2 includes both timed and full vacuum ports for ignition advance. It comes with: Metering Jets: Primary .101, Secondary .098 |
| Description_MKT | The Edelbrock #19054 AVS2 Series EnduraShine 650 cfm carburetor is the next generation in Edelbrock carburetors. Designed and calibrated for optimum street performance in small-block and some big-block engines. The AVS2 features annular flow primary boosters with a new calibration for improved off idle and cruising performance. The annular flow booster design delivers improved fuel atomization to eliminate flat spots that may be encountered when the carburetor transitions from idle to full throttle. Each annular flow booster features eight, equally spaced orifices to improve fuel metering from idle to the main circuit. The improved flow metering makes this carburetor ideal for use with a wide variety of small-block and big-block engines with either dual- or single-plane intake manifolds. The Edelbrock #19054 AVS2 includes both timed and full vacuum ports for ignition advance. It comes with: Metering Jets ? Primary .101, Secondary .098; Metering Rods ? .070 x .037; Step-Up Spring ? orange (5″ Hg). Use our Carburetor Stud Kits #8008 or #8024 if needed. Match with a variety of manifolds that include Edelbrock Performer, Performer EPS, RPM Air-Gap, Performer RPM, Torker II or other brands of similar design. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 3in.} |
| Description_TRA | Edelbrock carburetors are not calibrated for or compatible with alcohol, race or E85 pump fuel. The use of alcohol or E85 in your Edelbrock carburetor will damage your carburetor and void your warranty. |
| Description_TRA | Manual choke AVS2 Carbs cannot be converted to electric choke |
| Description_TRA | The use of a new fuel filter between the fuel pump and carburetor is required. Failure to do so will void the manufacturer’s warranty of the carburetor |
| Description_TRA | Thunder Series AVS2 Carbs will work with Ford automatic overdrive trans (AOD) when used with Lokar bracket SRK-4000 |
| Description_TRA | You must use Edelbrock Adapter #2732 when installing a Performer Series carburetor on certain Edelbrock intake manifolds |
| Description_TRA | • Manual choke AVS2 Carbs cannot be converted to electric choke • Thunder Series AVS2 Carbs will work with Ford automatic overdrive trans (AOD) when used with Lokar bracket SRK-4000 • Edelbrock carburetors are not calibrated for or compatible with alcohol; race or E85 pump fuel. The use of alcohol or E85 in your Edelbrock carburetor will damage your carburetor and void your warranty. • The use of a new fuel filter between the fuel pump and carburetor is required. Failure to do so will void the manufacturer s warranty of the carburetor • You must use Edelbrock Adapter #2732 when installing a Performer Series carburetor on certain Edelbrock intake manifolds |
| EGR Port | No |
| Emission | Without EGR |
| finish | EnduraShine |
| finish | Endurashine™ |
| Flange | Square Bore |
| Flange Shape | Square |
| Gasket Or Seal Included | Yes |
| height | 6.75 |
| length | 13.25 |
| Main Venturi Diameter | 1.19 |
| Material | Aluminum |
| Maximum Flow Rating | 650 |
| Metering Rod Size | .070 x .037 |
| Primary Jet Diameter | 0.101 |
| RGL | WARNING: This product can expose you to Zinc, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Secondary Jet Diameter | 0.098 |
| Series | AVS2 |
| Spring Force | 5″ Hg (Orange) |
| Type | Street |
| Usage | Street/Hi-Performance |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 8.9 |
| width | 7.38 |
