Description

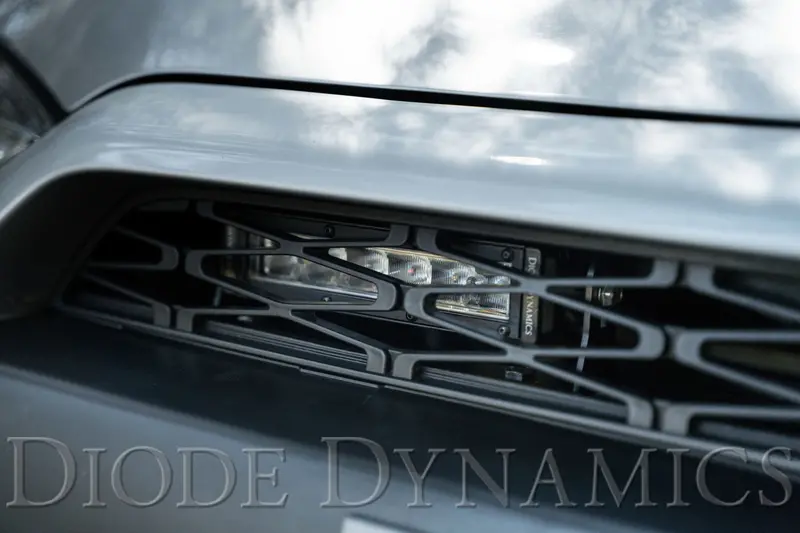

Perfect Fitment. The SAE/DOT LED Lightbar Kit compatible with the Toyota 4Runner 2014-2021 from Diode Dynamics allows you to mount a pair of SS6 Stage Series 6in Light Bars in the upper grille opening. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required!
Street Legal Output. This kit isn’t just for off road! It is legal for on-road use as driving lights (Please check your local laws and regulations for aiming, installation, and applicability). With the included plug-and-play wiring harness, you can control the kit through your toggle switch.
The Driving pattern was designed to supplement your high beams. Rather than a simple spot pattern, the Stage Series Driving pattern has a rectangular 20Wx8H degree pattern that is far more useful for directing light downrange at high speeds.
Designed For Performance. Using optical simulation modeling, Diode Dynamics Stage Series light bars have been designed for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package. Our light bars shine light in a highly functional and useful beam pattern, much more focused than older LEDs on the market.
Note: Compatible with all Toyota 4Runner 2014-2019 trims, but only compatible with 2020-2021 TRD Pro trim package.
Features:
- Compatible with Toyota 4Runner 2014-2021.
- Allows you to mount two 6in light bars in the upper grille opening.
- Street legal output as Driving Lights.
- Utilizes existing mounting points for easy installation – no cutting or drilling required.
Included in the box:
- Two (2) application-specific SS6 brackets for installation on the 2014-2021 Toyota 4Runner
- Two (2) SS6 Stage Series lightbars
- One (1) heavy-duty dual-output wiring harness
- Mounting hardware and guide
Resources
Installation Instructions
Specifications:
| beam_angle | Wide 100×8 |
| brand_logo | https://www.asapnetwork.org/sites/default/files/brands/icons/diode%20ASAP.png |
| Connector | Deutsch DT Input |
| height | 7.0 |
| last_update | 2022-11-15 19:08:56 |
| last_update | 2023-03-28 12:02:52 |
| last_update | 2023-06-21 15:22:06 |
| length | 14.0 |
| lumens | 800 Lumens |
| LUX | 7 400 cd |
| material_l | Aluminum |
| material_l | Aluminum PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets |
| sold_as | Pair |
| Universal | No |
| vehicle_type | Truck/SUV |
| volts | 9-16V |
| Warranty | 8 year warranty |
| waterproof_rating | IP68 Waterproof |
| weight | 9.58 |
| width | 10.0 |
