Description

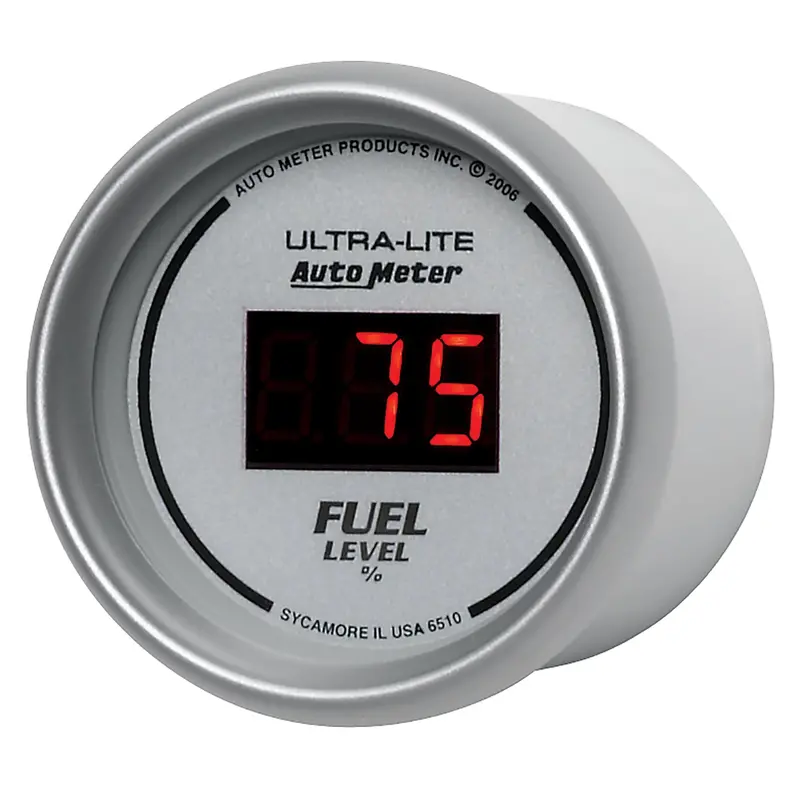

Traditionally, paring the proper fuel level level gauge to the application could be a more difficult task than it needed to be. The AutoMeter Digital Fuel Level Gauge drastically simplifies the process with it’s easily configurable resistance range. With 7 common configurations stored in memory from the factory, the vast majority of all applications are covered. In the instance your fuel level sender is not included in these preconfigured ranges, an innovative custom calibration mode allows any sending unit that operates between 0 and 280 ohms, empty or full, to be easily paired. Our “snapshot” programming method will allow you to capture the empty and full readings and the gauge does the rest. Digital display shows the percentage of fuel remaining (0-100%). No matter your application, there simply isn’t an easier solution for fuel level monitoring available on the market. A direct plug in wiring harness is included for ease of installation.
Resources
Installation Instructions
Specifications:
| Analog Or Digital | Digital |
| Bezel Color | Brushed Aluminum |
| Bezel Style | Super Bezel |
| Block Adapter Included | No |
| Bulb Technology | LCD |
| Description_DES | GAUGE; FUEL LEVEL; 2 1/16in.; 0-280O PROGRAM.; DIGITAL; SILVER DIAL W/RED LED |
| Description_EXT | 2-1/16in. FUEL LEVEL; PROGRAMMABLE 0-280 O; DIG. SILVER |
| Description_FAB | 12 And 16V Compatible |
| Description_FAB | E-Z View Digital LED Display |
| Description_FAB | Incl. 20 ft. Wiring Harness |
| Description_FAB | Incl. Mounting Hardware/Instructions |
| Description_FAB | User Definable Resistance Between 0-280 Ohms |
| Description_INV | 2-1/16in. FUEL LEVEL; PROG W/PRESETS; DI |
| Description_LAB | Made In Logo |
| Description_LAB | Proposition 65 |
| Description_MKT | Traditionally, paring the proper fuel level level gauge to the application could be a more difficult task than it needed to be. The AutoMeter Digital Fuel Level Gauge drastically simplifies the process with it’s easily configurable resistance range. With 7 common configurations stored in memory from the factory, the vast majority of all applications are covered. In the instance your fuel level sender is not included in these preconfigured ranges, an innovative custom calibration mode allows any sending unit that operates between 0 and 280 ohms, empty or full, to be easily paired. Our “snapshot” programming method will allow you to capture the empty and full readings and the gauge does the rest. Digital display shows the percentage of fuel remaining (0-100%). No matter your application, there simply isn’t an easier solution for fuel level monitoring available on the market. A direct plug in wiring harness is included for ease of installation. |
| Description_SHO | 2-1/16in. FUEL LEVEL |
| Electric Or Mechanical | Digital |
| Face Color | Silver |
| Fuel Line Adapter Included | No |
| Gauge Adapter Included | No |
| Gauge Size | 2.0625 in. |
| Gauge Size | 52.4mm |
| Gauge Type | Fuel Level |
| height | 4.5 |
| Hole Size | 0.0625 in. |
| Hole Size | 52.4mm |
| Illuminated | Yes |
| length | 4.75 |
| Lens | Flat Clear |
| Lighting Color | Red |
| Lighting Type | Digital LED |
| Liquid Filled | No |
| LTL | N |
| Mounting Bracket Number | 2230 |
| Movement Type | Digital |
| Number Color | Red |
| Outer Bezel Diameter | 2.250 in. |
| Pointer Color | N/A |
| Size | 2.3125 in. |
| Sweep | Digital |
| Voltage | 8-18 V |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | Warning: This product can expose you to chemicals; which are known to the State of California to cause cancer. For more information; visit www.p65warnings.ca.gov. |
| weight | 0.5 |
| width | 4.5 |
| Wire Harness Number | 5233 |
